5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

Product Categories
Hong Kong IFly Electronics Co., Limited
Contact Now

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

Brand Name : IFLY

Model Number : F-D-501

Certification : FCC, RoHS, CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/month

Delivery Time : 3-5working days

Packaging Details : 2pcs/box

Chip set : Atheros AR9344 600MHz

Storage : 8MB Flash

Port : 10/100Mbps LAN*2

Transmission : DSSS

Modulation : OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

Standard : IEEE802.11n,IEEE802.11a ,IEEE802.3u

Power Dissipation : ≤3W

Channel : 4900～6100MHz

Contact Now

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

Main Features:

1. Unique antenna, radio frequency amplifier, low noise receiver design, to ensure long-distance video, voice and data transmission

2. Customize frequently used scenes and modes for users to facilitate the use and assembly of non-wireless professionals

3. Unique TDMA technology to maximize the use of bandwidth resources to better support point-to-multipoint data transmission

4. POE power supply, support the international common 802.3af standard

5. Support remote control and management through the web to facilitate the configuration

6. Waterproof anti-UV shell to ensure the stability of the equipment in the outdoor work

Data Sheet

Chip set Atheros AR9344 600MHz
Memory DDR2 64MB
Storage 8MB Flash
IC SiGe5012B
Port 10/100Mbps LAN*2
Speed 11a:54M,48M,36M,24M,18M,12M,9M,6Mbps

11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,

28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4,150Mbps
Transmission DSSS
Modulation OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Standard IEEE802.11n,IEEE802.11a ,IEEE802.3u
Protocol CSMA/CA,TCP/IP,IPX/SPX,Net BEUI,DHCP,NDIS3,NDIS4,NDIS5
Channel 4900～6100MHz
Power Dissipation ≤3W
Power POE 24V 1A /48V 0.5A

RF

@25℃±2dB

 802.11a 6-24Mbps 23±2dBm
36-48Mbps 22±2dBm
54Mbps 21±2dBm
802.11n HT20 MCS 0-3 23±2dBm
MCS 4 22±2dBm
MCS 5 21.5±2dBm
MCS 6 21±2dBm
MCS 7 20.5±2dBm
HT40 MCS 0-3 22±2dBm
MCS 4 21.5±2dBm
MCS 5 21±2dBm
MCS 6 20.5±2dBm
MCS 7 20±2dBm
Sensitivity 802.11a 6Mbps ≤ -89； 54Mbps ≤ -73
802.11n HT20 MCS 0 ≤ -86; MCS 7 ≤ -68
HT40 MCS 0 ≤ -83; MCS 7 ≤ -65
Antenna Frequency 4900～6100MHz
Direction Vertical
Gain 12DBi
Management WEP Management Yes
SNMP MIB Yes
Telnet Yes
Serial Yes
Security MAC Address Control No
Encryption WEP 64/128bits,WPA,WPA2,802.1x
Operating Condition Operating Temperature -30～65℃
Storage Temperature -50～80℃
Humidity ≤95%(Non-condensed)

Product Size & Weight

200*200*130.5MM

0.5kg

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

Package list

1 * F-D-501

1 * 24V POE power adapter

1 * Ring

1 * Bracket kit

4 * Screw

4 * Rubber stick

1 * Manual

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

Package size & Weight

236*231*90MM

1.0kg

Carton Size & Weight

Size:480*470*255MM

G.W:11.5kg

QTY:10PCS

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ

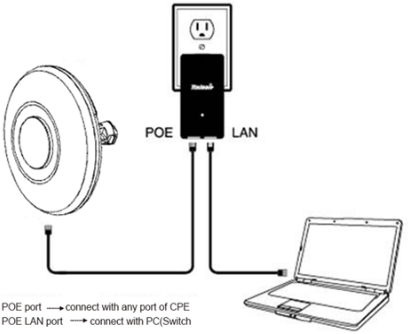

Connection Diagram

5G high power 300mbps Wireless Ethernet Bridge oem wireless bridge 4900-6100MHZ
